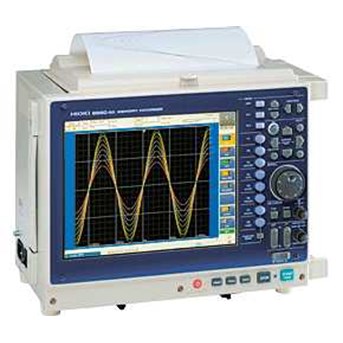

HIOKI 8860-50, 8861-50 MEMORY HiCORDER

As an Oscilloscope, As a Data Logger Record Waveforms in Any Situation - A faster CPU greatly enhances instrument operability and response. - Multi-channel logging on up to 64 or 128 channels (Use with the 8958) - 20 MS/s high-speed sampling (Use with the 8956) - Various interfaces built-in: LAN/USB/PC-card slot - Supports the new high-voltage input module for measuring high voltage directly. Basic specifications (Accuracy guaranteed for 1 year) : Number of input Units : Max. 4 units (8860-50) Max. 8 units (8861-50) Number of channels : Max. 16 analog channels (max. 64 channels with scanner unit) + 16 logic channels (standard configuration) (8860-50) Max. 32 analog channels (max. 128 channels with scanner unit) + 16 logic channels (standard configuration) (8861-50) Measurement ranges : (20 div full-scale) 5mV to 20V/div, 12 ranges, (using the 8956), resolution : 1/100 of range (8860-50) 5mV to 20V/div, 12 ranges, (using the 8956), resolution : 1/100 of range (8861-50) Max. allowable input : DC 400V (using the 8956) (8860-50) DC 400V (using the 8956) (8861-50) Frequency characteristics : DC to 10MHz (using the 8956) (8860-50) DC to 10MHz (using the 8956) (8861-50) Power consumption : 100 to 240 V AC (50/60 Hz) (220 VA max. printer not used) 12 V DC (use the DC POWER UNIT 9684 : option, factory installation only) (8860-50) 100 to 240 V AC (50/60 Hz) (280 VA max. printer not used) 12 V DC (use the DC POWER UNIT 9684 : option, factory installation only) (8861-50) Dimensions, mass : 330 mm (12.99 in) W × 250 mm (9.84 in) H × 184.5 mm (7.26 in) D, 8 kg (282.2 oz) (printer not installed) (8860-50) 330 mm (12.99 in) W × 250 mm (9.84 in) H × 284.5 mm (11.20 in) D, 10.5 kg (370.4 oz) (printer not installed) (8861-50) Time axis : at memory function 5 µs to 5 min/div, 26 ranges, sampling period : 1/100 of range, external sampling, dual timebase possible Measurement functions : MEM (high-speed recording) REC (real-time recording) REC & MEM (realtime recording + high-speed recording) FFT (frequency analysis) Real-time Save (records directly to storage media) Memory capacity : 12-bits × 32M-Words/ch (1ch at 8860-50, 2ch at 8861-50) to 2M-Words/ch (16ch at 8860-50, 32ch at 8861-50) *Memory capacity can be expanded 32 times.(Optional memory board) Data storage media : PC Card Type II slot × 2, Hard disk drive (option) × 1 Recording paper : (option) A4: 216 mm (8.50 in) × 30 m (98.43 ft), or A6: 112 mm (4.41 in) × 18 m (59.06 ft) selectable, thermal paper roll, Recording speed : Max. 25 mm (0.98 in)/sec Display : 10.4 inch TFT color LCD (SVGA, 800 × 600 dots) External interfaces : GP-IB (PC card), USB2.0 (series A receptacle 3 ports), LAN (HTTP/FTP/ Send mail or other), Monitor output (15-pin D-sub, SVGA output) Supplied accessories : Power cord × 1, Input cord label × 1, Application Disk (Wave Viewer Wv, Communication Commands table) × 1
